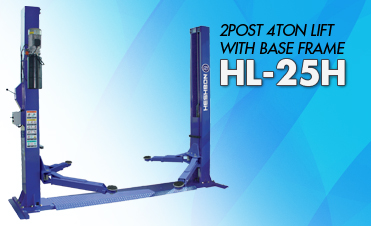

| 2 POST LIFT |
| Specification : |
| Model No. HL-25H |
| Lifting Capacity (kg) 4,000 kg |
| Max.Lifting Height (mm) 1,763 ~ 1,803 mm |
| Dimension (mm) 2,848(L) X 3,490(W) X 2,780(H) |
| Power Supply & Motor 1ph : 2.5HP, 4P, 220V, 50/60Hz |
| 3ph : 2HP, 4P, 220/380V, 50/60Hz |
| Introduction : |
| High-Performed durable hydraulic cylinders composed by |
| double pressure seals. |
| Automatic arm restraint. |
| High-quality lifting chain and pre-stretched synchronization wire rope. |
| Double telescopic pads screw. |
| Special engineered anti-friction carriage guides. |
| Hand lever for manual type locker release device. |
| Door protection rubber blocks protect the vehicle body. |
| Useful to the low ceilinged workshop. |
