| Specification : |

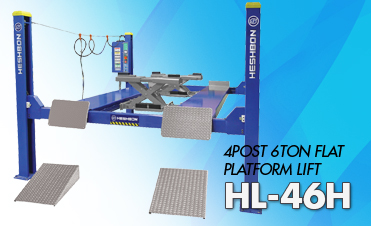

| Model No. HL-46H |
| Lifting Capacity (kg) Body : 6,000 / Jack : 3,000 kg |
| Max.Lifting Height (mm) Body : 1,750 / Jack : 595 mm |
| Dimension (mm) 7,384(L) X 3,616(W) X 2,215(H) |
| Power Supply & Motor 3ph : 3HP, 4P, 220/380V, 50/60Hz |
| Introduction : |
| Hydraulic cylinder located in the fixed platform and is thus |
| perfectly protected. |
| High resistance galvanized and pre-stretched lifting cable. |
| Lock release lever for the emergency situation. |
| Adjustable parking ratchet rails ensure the platforms and cross |
| members horizontal within 4 wheel alignment tolerances. |
| Automatic spring loaded eccentric brake system in the event of |
| cable breakage and ensures complete stability during parking. |
| Self lubricated large diameter pulleys and maintenance-free bushes. |
| Hydraulic two-level 3ton scissor jack. (OPTION) |
| Electric remote-controller. (OPTION) |
