DIESEL SMOKE OPACITY METER
Update Terakhir :
02-05-2016 23:10
Dapatkan Spesifikasi Harga
DIESEL SMOKE OPACITY METER Produk Terbaik dari
PANCA JAYA SETIA Perusahaan yang bergerak di bidang Automotive Service Equipment
Detail Produk

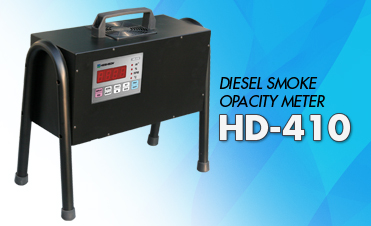

| DIESEL SMOKE OPACITY METER HD-410 |
| Specification : |
| Model HD-410 |
| Measu. ITEMS Smoke opacity, Smoke Dencity, RPM(option) |
| Light Source Green LED(565nm) |
| Detection Photodiode |
| Shell Length & Inside.Diam. Length : 215mm , Inside diameter : 21mm |
| Shell Tempur. Maintain constantly about 80 |
| Repeat Within 1% |
| Precision Within ±1% (RPM :±80rpm) |
| Responding time 0.5second(90%) |
| Smoke detecting speed 60 times per a second |
| Display of smoke density 4 times per a second |
| Data dispatch RS232 Method, 4 times per a second (Ref. Protocol) |
| Warming up time About 6 minutes |
| Using filter 0.5second Besel low pass digital filter |
| Electricity source 220V AC / 110V AC 60Hz |
| Expending Wattage About 50W |
| Proper temperature 0~40 |
| Size 400(W) x 170(D) x 200(H) mm (excluding prop) |
| Weight About 5kg |
| Probe length 760mm |
| Probe inside diam. Inside diameter: 10mm |
| Option RPM sensor (battery re-charge method), Temperature sensor |
| Supplied Accessory Probe, Electric code, Manual |
