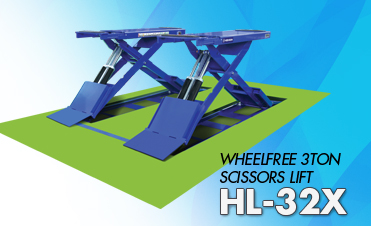

| MINI SCISSOR LIFT HL-32X |
| Specification : |
| Model No. HL-32X (INGROUND) |
| Lifting Capacity (kg) 3,300 kg / 3,000kg(CE) |
| Max.Lifting Height (mm) 1,820 mm |
| Dimension (mm) 2,922(L) X 2,055(W) X 140(H) |
| Power Supply & Motor 1ph : 2.5HP, 4P, 220V, 50/60Hz |
| 3ph : 2HP, 4P, 220/380V, 50/60 Hz |
| Introduction : |
| Master & Slave cylinder system composed by high-Performed durable |
| hydraulic cylinders. |
| Easy synchronization control system by special hydraulic valves. |
| Air cylinder operated locking device. |
| Platforms slide extensions. |
| Rubber pads on the platform to protect the vehicle chassis. |
| Applicable to both in/above-ground mount. |
| Descend alarm signal. (CE) |
| De-synchronization detecting electronic photo-cell. (CE) |
| Hydraulic hand-pump for emergency ascend/descend. (CE) |
| Two step descending system gives full foot protection. (CE) |
| Van Adaptor kit. (OPTION) |
| Pit frame for in-ground type. (OPTION) |
