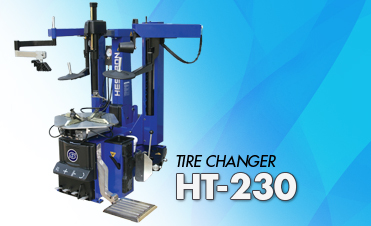

| TIRE CHANGER HT-230 |
| Specification : |
| Model HT-230 |
| Bead-Breaker Force 3,200kg |
| Max.Turntable Torque 1,200Nm |
| Max. Wheel Width 350mm (15") |
| Operating Pressure 10 bar (140psi) |
| Motor Power 0.75kw |
| Power Supply 1ph/3ph 110/220V 50/60Hz |
| Weight 405 kg |
| Introduction : |
| High-Performed semi-automatic 4 foot pedals. |
| Air bead breaker with double effect pneumatic cylinder. |
| Powerful motor. |
| Manual swing arm. |
| Tire air inflator. |
| Jaw with jet-blaster for wide range of wheels. |
| Plastic jaw cover to protect from the wheel damage. |
| Simple and easy operate method. |
| Tilting post by pedal controlled. |
| Pneumatic left helper arm and right press arm for premium service operation. |
| Pneumatic wheel lift for convenient and easy wheel adapt. (OPTION) |
