WHEEL ALIGNMENT SCISSOR LIFT
Update Terakhir :
30-04-2016 19:57
Dapatkan Spesifikasi Harga
WHEEL ALIGNMENT SCISSOR LIFT Produk Terbaik dari
PANCA JAYA SETIA Perusahaan yang bergerak di bidang Automotive Service Equipment
Detail Produk

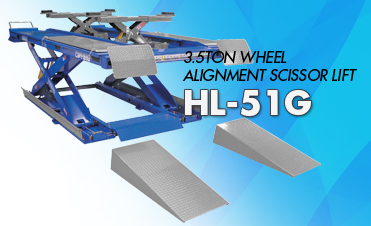

| WHEEL ALIGNMENT SCISSOR LIFT HL-51G |
| Specification : |
| Model No. HL-51G |
| Lifting Capacity (kg) Body : 3,500 / Jack : 2,000 kg |
| Max.Lifting Height (mm) Main : 1,780 mm / Jack : 455 mm |
| Dimension (mm) 5,660(L) X 2,040(W) X 265(H) |
| Power Supply & Motor 1ph : 2.5HP, 4P, 220V, 50/60 Hz |
| 3ph : 2HP, 4P, 220/380V, 50/60 Hz |
| |
| Introduction : |
| High-Performed durable hydraulic cylinders composed by double pressure seals. |
| Sync. hydraulic block & torsion bar ensure High-Performed synchronization. |
| Air cylinder operate locking device with automatic engagement and |
| pneumatic release system ensure safety. |
| Front turn-table recesses and rear sliding plates for 4-wheel alignment operation. |
| Hydraulic two-level 2ton scissor jack. (OPTION) |
